Advice wanted

[ArchieHood 3,692]

39 minutes ago, bigmac 97kt said:

Ill fecking gay you twat

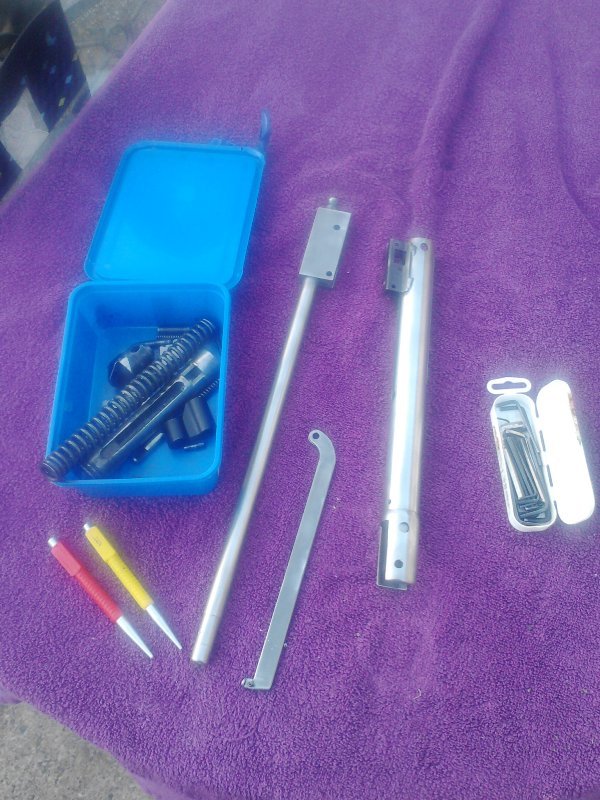

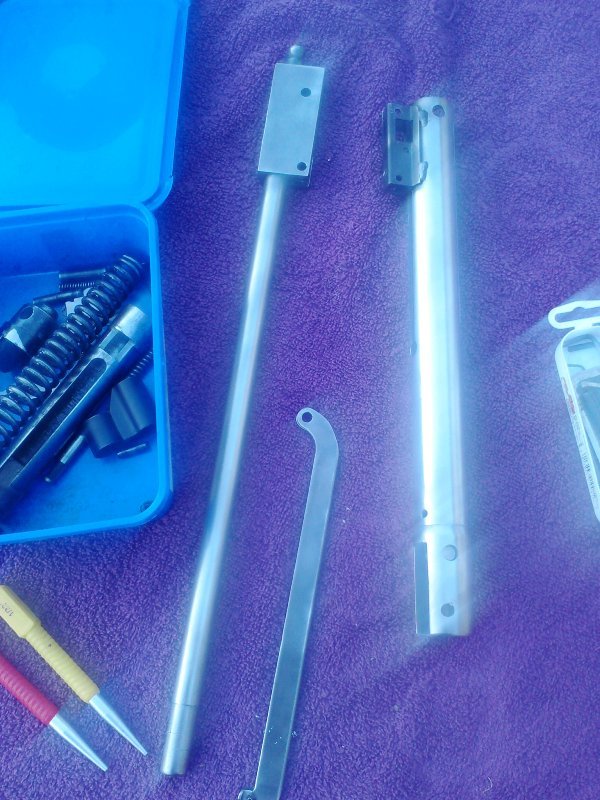

As it happens im stripping one as we speak

there is nothing to it ,

as Jon has say,d its not a complete strip down

pics to follow and what you have to do .

atvbjimmy

Cometh the hour, cometh the gay shit stirring springer queen.................

[bigmac 97kt 13,813]

1 minute ago, ArchieHood said:

Cometh the hour, cometh the gay shit stirring springer queen.................

Dont start him off

the tx pics and the frozen pigeons

will be on next Archie

atvbjimmy

[just-A-snap 1,269]

Well done with the images bigmac 97kt.  And not an IKEA in sight

All the very best

[Lance82 131]

3 hours ago, bigmac 97kt said:

Dont start him off

the tx pics and the frozen pigeons

will be on next Archie

atvbjimmy

Thanks big mac, very detailed instructions

is that what u think then lads? Just a strip n clean?

Edited March 24, 2018 by Lance82

[bigmac 97kt 13,813]

21 minutes ago, Lance82 said:

Thanks big mac, very detailed instructions

is that what u think then lads? Just a strip n clean?

Yes that is all it needs

take the old grease off and new on

wish this was all this one needed lol

just had to buy a new cylinder for this and hope fully a hole new trigger and safety

now this is a full strp down lol

even the bluing

atvbjimmy

[bigmac 97kt 13,813]

Hawk



Just click on the link above

you may get a few more tips on cleaning and polishing the piston if you get stuck just gis a shout mate

atvbjimmy

[Lance82 131]

Just now, bigmac 97kt said:

Hawk



Just click on the link above

you may get a few more tips on cleaning and polishing the piston if you get stuck just gis a shout mate

atvbjimmy

Thanks very much and no doubt u will hear from me, hopefully not in a stressed swearing situation. Haha. Atb. Lance

[bigmac 97kt 13,813]

2 minutes ago, Lance82 said:

Thanks very much and no doubt u will hear from me, hopefully not in a stressed swearing situation. Haha. Atb. Lance

Bean there done that

still do and will

atvbjimmy

[charlie caller 3,654]

Brilliant that Mac well done, just to add Lance, dont blather the spring in moly grease when you put it back together, get some moly PASTE, and just a light covering is all thats needed, if you can get a tin of dri slide spray about a fiver off fleabay, and some silicon oil, de grease everything, moly paste on the spring, dri slide on the piston, and just a light dab of silicon oil on the piston seal, it will shoot smoother, and I guarantee it wont diesel any more, good luck mate, as Mac said, any probs give us a shout.

[Lance82 131]

2 hours ago, charlie caller said:

Brilliant that Mac well done, just to add Lance, dont blather the spring in moly grease when you put it back together, get some moly PASTE, and just a light covering is all thats needed, if you can get a tin of dri slide spray about a fiver off fleabay, and some silicon oil, de grease everything, moly paste on the spring, dri slide on the piston, and just a light dab of silicon oil on the piston seal, it will shoot smoother, and I guarantee it wont diesel any more, good luck mate, as Mac said, any probs give us a shout.

Thanks very much for the sound advice cc. Im gonna get the stuff i need and give it a bash 1 night when kids are in bed and well out the way. I am a complete novice whos never seen the insides of any rifle, never mind attempt any fix or maintain.

[charlie caller 3,654]

Take your time pal, you will be amazed how easy it is once ya crack on.

[bigmac 97kt 13,813]

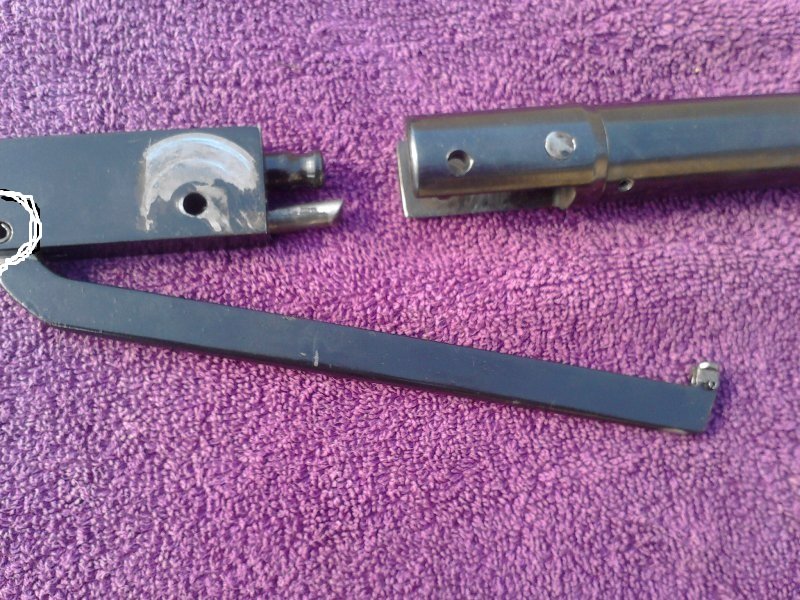

Lance if you dont want to take the barrel out of the cylinder

just cock the rifle and knock the pin out that holds the cocking leaver in place

ONLY ONCE YOU HAVE REMOVED THE SPRING

now this pin is like a split pin and you will need some thing the same size to knock it through if not it will only get tighter as you tap it .

this way you will not need to dismantle the barrel from the cylinder

ill mark on a pic witch pin it is for you

atvbjimmy

PS,,you may need to take the trigger safety off as it sits in front of the end cap

just take a pic of it before you do so you know how it go,s back together

and there is a trigger spring that sits in the end cap and on the trigger just pull this down and out

Theres only one way to learn Lance just do it
