Another Hw35 /177/squab.s Rifle

[bigmac 97kt 13,795]





f**k sake Mac - Stop



....... You're wrecking the place



:laugh:

Dose not look like a rifle only doing 9 dose it Jon



atvbjimmy :thumbs:

No mate - are you sure the chrono is spot on?



I just noticed, you shot the shit out of a full tin of peas :laugh:



He tested a new 177 rifle to see if it was and it was putting out over 800fps so he say,d but i did not see it



he has no reason to say other wise he is a good rfd and a mate



but what gets me is the way its destroying every thing it hits



honest its doing my head in i cant put any more washers in her as it will not cock



the only thing that has not been done is the piston seal but the one in her looks good real good



may have to look into a vortex seal for her



atvbjimmy :thumbs:

[bigmac 97kt 13,795]

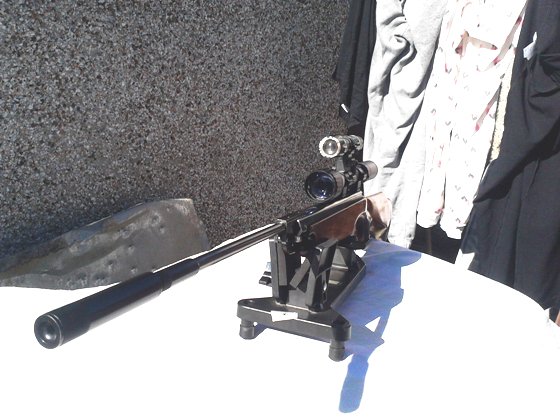

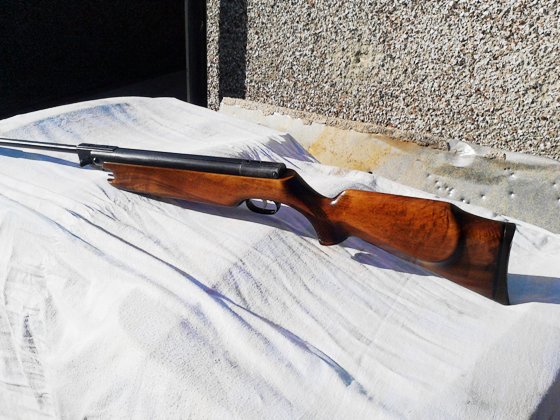

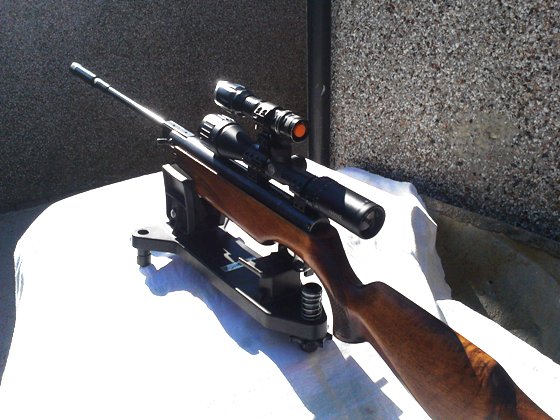

Well she is all fitted out now with the scopes off the tx200



hawk vantage 3,9,40 ao ready for her testing tonight



taking her to one of our perms to put her through her paces before its on her way back to Rob need to see what she is like on the rabbits



pellets ill be using are



JSB RS 7,33gr

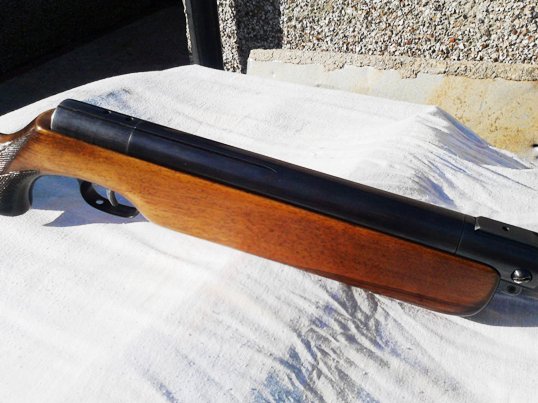

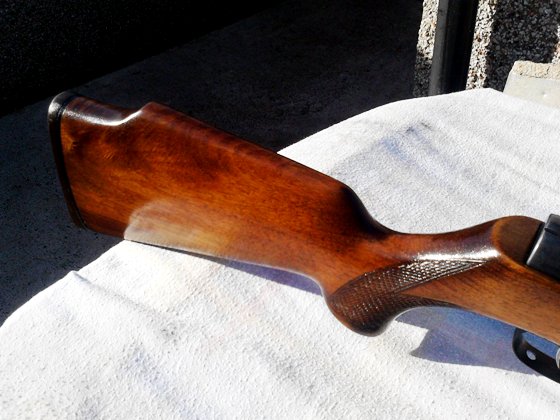

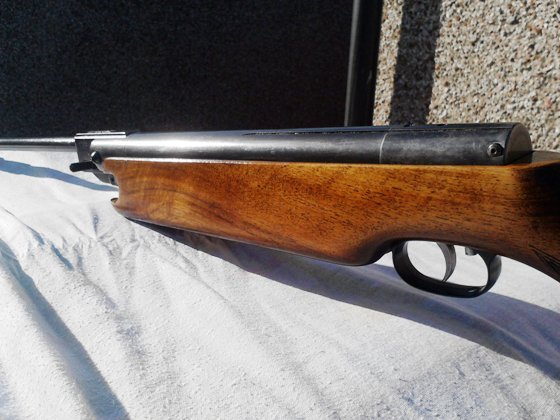

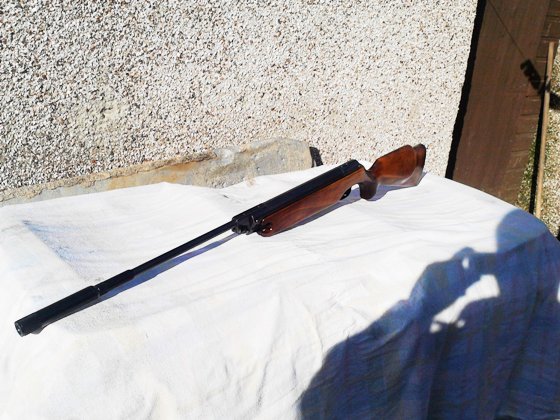

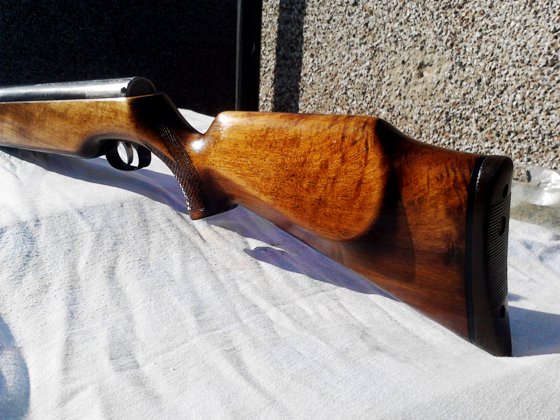

iv flattend the stock on her and buffed her up with the bee,s wax



even if i say so my self i would be proud to own this old classic



atvbjimmy :thumbs:

[bigmac 97kt 13,795]

And ready for tonight

[Paulnix 426]

That looks bloody amazing, credit to you, what a great job and something for Rob to treasure for years to come.

Great seeing the progression and it feels just like Marks dog it's like it's part of the airgun section collective !!.

[bigmac 97kt 13,795]

That looks bloody amazing, credit to you, what a great job and something for Rob to treasure for years to come.

Great seeing the progression and it feels just like Marks dog it's like it's part of the airgun section collective !!.

Looking forward to getting out with her



and seeing how she performs



Paul got the grand kids hear at the moment so i cant get her zero,d out to 18yrds for now



then when i hit the perm it will be out to 35mtrs then its one mil dot out to 60mtrs



atvbjimmy :thumbs:

[MickC 1,825]

Is the 35 still down on power ? The old seal has been worn/bedded/sized itself in to what the old cylinder was,now you have polished the cylinder out it might now be undersized and losing power that way. HW 35 are also well known to leak from the front breech that is soldered to the front of the action,easy to check with soapy water. If it is leaking from the breech here is a guide over on BBS showing how to fix it. hth



http://www.airgunbbs.com/showthread.php?661575-hw-35-leaking-breech-fix

Edited March 25, 2017 by MickC

[bigmac 97kt 13,795]

Is the 35 still down on power ? The old seal has been worn/bedded/sized itself in to what the old cylinder was,now you have polished the cylinder out it might now be undersized and losing power that way. HW 35 are also well known to leak from the front breech that is soldered to the front of the action,easy to check with soapy water. If it is leaking from the breech here is a guide over on BBS showing how to fix it. hth



http://www.airgunbbs.com/showthread.php?661575-hw-35-leaking-breech-fix

Just sorted this out in the last hour it was leaking air from the breach but is still low



and i think your right it needs a new piston seal



just zero,d her in and boy you got to love these old hw rifles



atvbjimmy :thumbs:

[just-A-snap 1,269]

Never a dull moment mac, well done mate.

All the best

[bigmac 97kt 13,795]

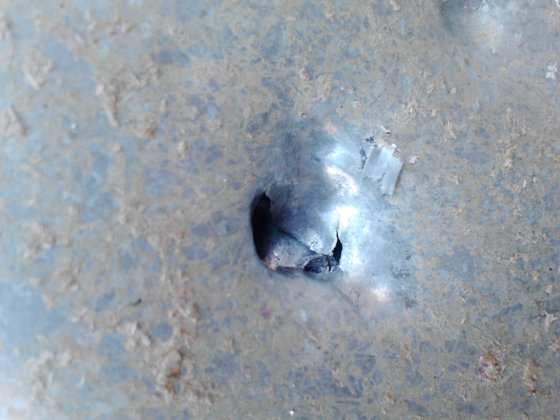

And what she leaves behind when the target is removed



atvbjimmy :thumbs:

[squab 2,875]

Im feeling the love for her lol,cracking job pal looks a stunner,il get that seal ordered im busting for a go of her now lol nice one cheers

[MickC 1,825]

Nice work by the way,you can see why a lot of people prefer the older HW Airguns,well worth the effort sorting it out .



I stripped/degreased and tuned my sons 99s when I got it for him and fitted a Vortek seal while I was on. However I sized the new seal and it just would not make decent power with the polished cylinder and the more I tried to "up" the power the worse the rifles action got on firing. A mate said to get a new seal but don't size it and let it bed into the polished cylinder itself. I ordered a C seal from Aussie custom seals (identical to Vortek but impregnated with moly) and just fitted it straight from packet and removed all power washers I'd previously fitted. It was a transformation,the gun on firing was now nice and sedate and there was no muzzle flip at all. Power crept up steadily over a few hundred shots to 11.2 when before it was struggling to make 10+.

Edited March 25, 2017 by MickC

[bigmac 97kt 13,795]

Nice work by the way,you can see why a lot of people prefer the older HW Airguns,well worth the effort sorting it out .



I stripped/degreased and tuned my sons 99s when I got it for him and fitted a Vortek seal while I was on. However I sized the new seal and it just would not make decent power with the polished cylinder and the more I tried to "up" the power the worse the rifles action got on firing. A mate said to get a new seal but don't size it and let it bed into the polished cylinder itself. I ordered a C seal from Aussie custom seals (identical to Vortek but impregnated with moly) and just fitted it straight from packet and removed all power washers I'd previously fitted. It was a transformation,the gun on firing was now nice and sedate and there was no muzzle flip at all. Power crept up steadily over a few hundred shots to 11.2 when before it was struggling to make 10+.

New seal on its way Mick



its the only thing that's not done to this 35 that i did do to the last one so its got to be the seal



Mind on saying that it grouped nice tonight out to 30yrds until it started to clip the mod on the way out the grub screw had fallen out and the mod was loose lol



where in the northeast are you from Mick



atvbjimmy :thumbs:

[bigmac 97kt 13,795]

Just fitted the new seal and put the new spring back in as well she now has a new seal new spring and three power washers sitting in her



she cocks nice and smooth again and just a little nudge in the shoulder again she is no longer snappy as she was the other night when i had her out on a test shoot



she started off smooth then went snappy all of a sudden so i put her away mind she was pellet on pellet out to 30yrds



then she went all over the place like a scatter gun but this was down to the grub screw coming out (lost it)of the mod and the pellets were clipping the mod on the way out once this was removed and re,zeroed with out the mod she came back on target .



hitting cola can out from 30yrds to 50yrds



but she as say,d became very snappy so i put her back in the tank as i new some thing was not right



so i replaced every thing back tonight with new and she is back on form

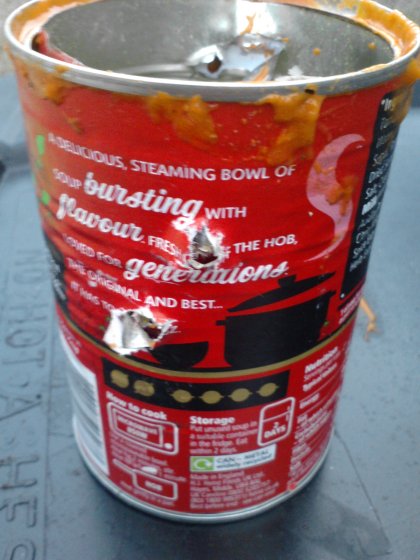

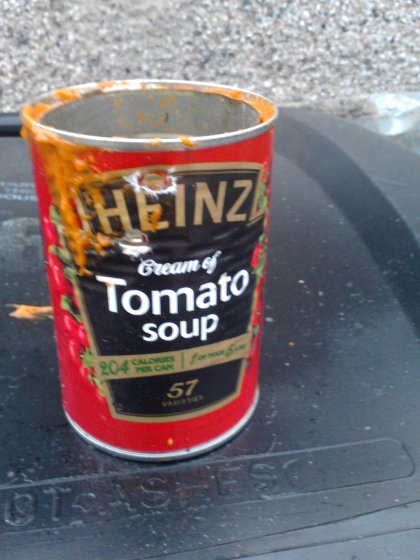

smashing the sh*t out of bottles and i placed one can inside the other and she went strait through them at 18yrds

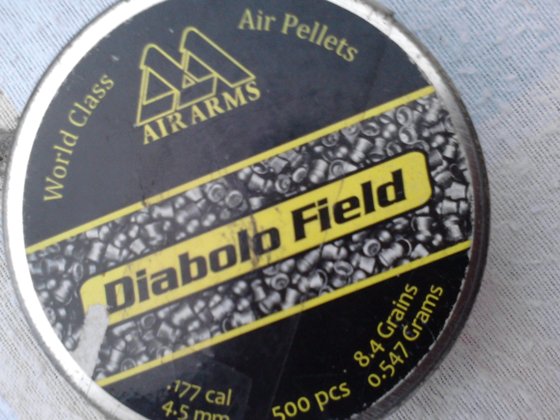

and this time with heavier pellets 8,04gr AAdiabolo field 0547grams



so im even happier at that



as long as this rifle is not over and is not to low she will be on her way home soon as iv done a few little jobs on her

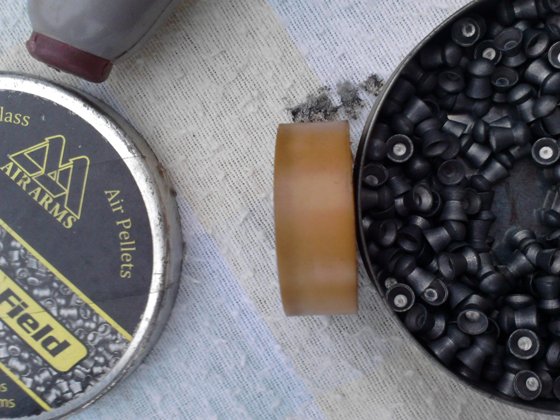

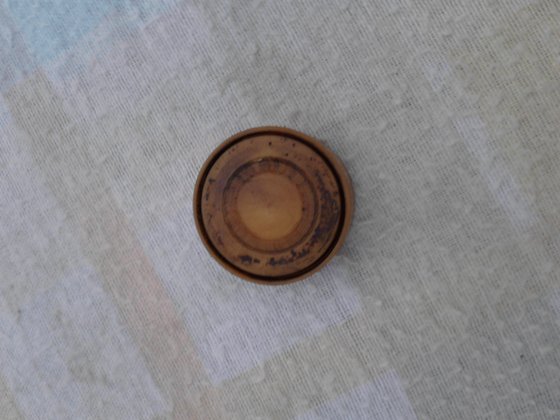

the old piston seal had lost its edge but i could only see this when i put the new one next to it



atvbjimmy :thumbs:

[bigmac 97kt 13,795]

Well just had her crono,d and she is sitting at 10.47 fp now she may go up or fall a bit as the seal beds her self in



crono,d using 8,4gr AA field



may be picking up a scope for her tomorrow rob



then its a test shoot at the range just to put her through her paces from 35mtrs to 60mtrs



then it will be a quick clean up and she will be ready to go home mate



just a few little jobs to do first today



atvbjimmy :thumbs:

[bigmac 97kt 13,795]

Sorry lads crono,d with jsb rs 7,33gr



but just as good with the AA field 8,4gr

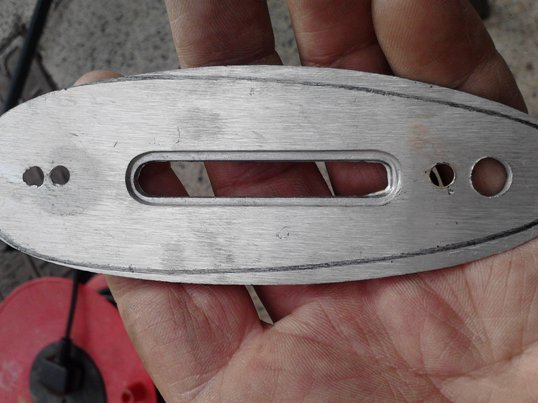

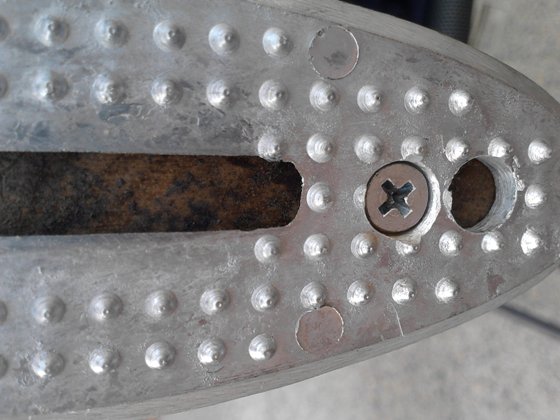

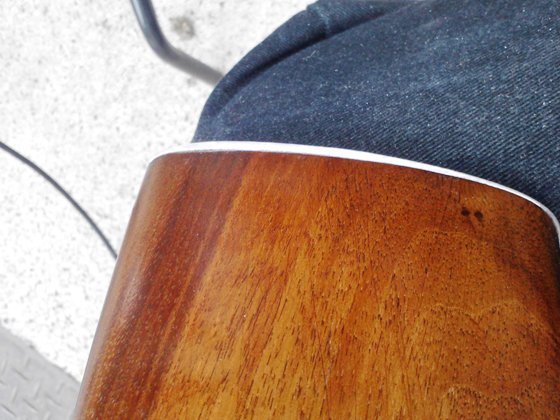

well i picked up the bis butt pad mate and set about fitting her

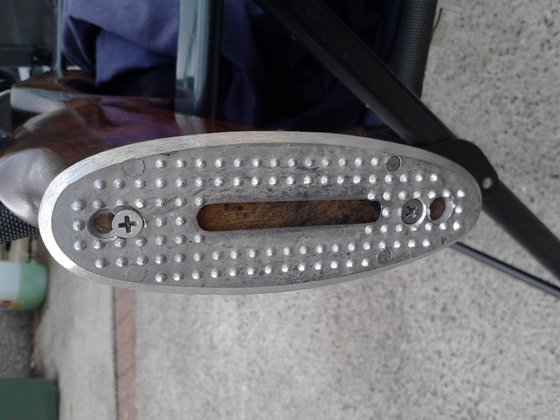

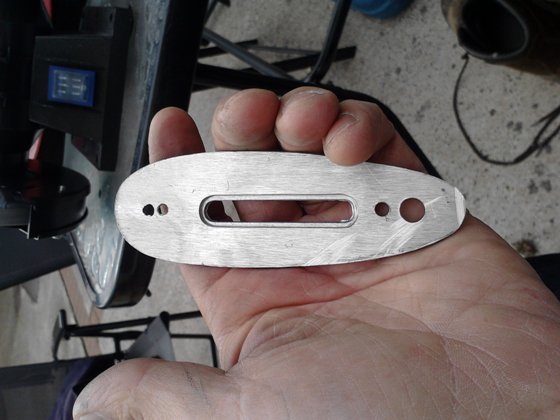

first i had to mark new holes for the back plate then fit the plate to the stock

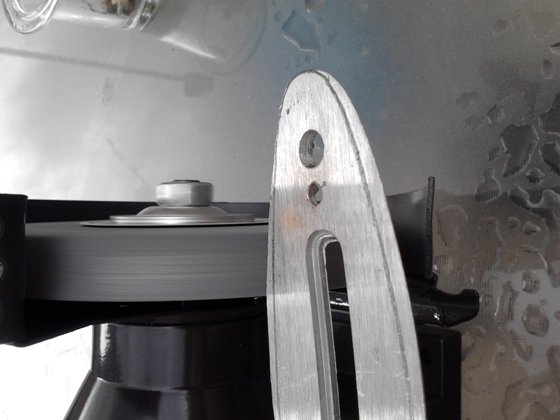

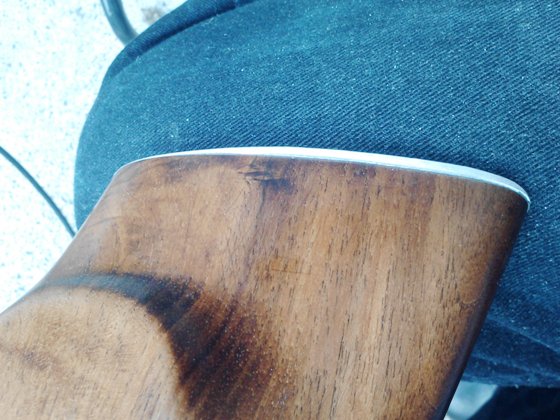

then use a marker to draw a line around the plate



and grind it back to fit the stock



once this is done you then fit it back on the stock to see if it fits right



you may have to draw round it again so you can remove any more of the stock plate



once this is done you then fit the rest of the butt pad together and jobs a good un



fitted a new stock pin as well for you rob you just need the barrel band now mate and you can fit a gun belt to her



NOW LETS BE HONEST ROB I WAS SENT AN OLD GIRL THAT DID NOT JUST NEED A NEW DRESS



BUT NEEDED A FULL BLOWING MAKE OVER



AND I THINK IV GIVEN HER THAT MY FRIEND



ATVBJIMMY :thumbs:
